1700℃ Single Zone Tube Furnace1700℃ Single Zone Tube Furnace

1700℃ Single Zone Tube Furnace

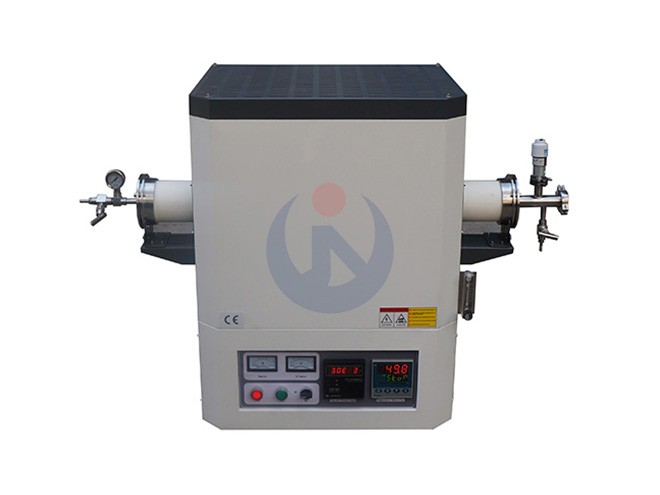

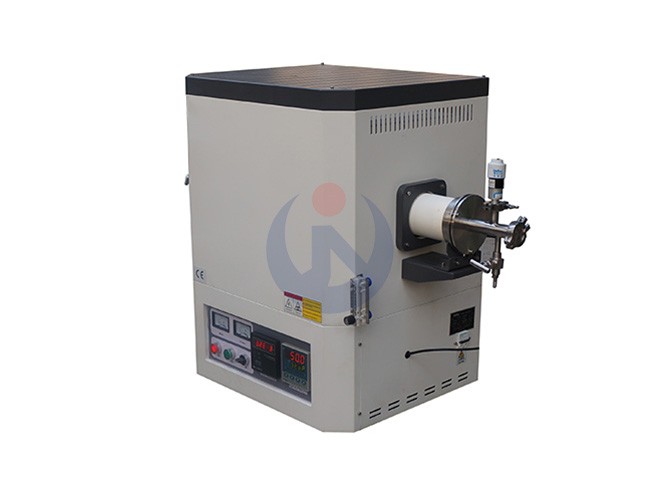

1700℃ Single Zone Sealed Type Tube Furnace

Model No.: STG-100-17

Heating Zone: 300mm

Continuous Temp.: 1600℃

Heating Element: Quality Mosi2 Rod

Temperature Precision: ±1℃

Thermocouple: B Type

Specification

Model STG-40-17 STG-60-17 STG-80-17 STG-100-17 Customized
Chamber Size(WxLxH)mm Φ40xL900 Φ60xL900 Φ80xL900 Φ100xL900 Any size
Heating Zone Length
(mm)
300 300 300 300 Any size
Type Benchtop
Furnace Structure Chamber Material, Temperature Controller System, Heating Element, Corundum Tube, Furnace Shell and Other assistant parts
Max Temperature 1700℃
Continue Operating Temp. 1600℃
Power Supply 220V/3KW 220V/4KW 3800V/5KW 3800V/5KW Depends on size
Heating Element Quality Mosi2 Rod
Chamber Material High temperature polycrystal alumina ceramic fiber material
Temperature Precision ±1℃
Thermocouple B type
Temperature Controller SHIMADEN (Japan) brand intelligent microcomputer PID controller can program 4 groups 32 segments
Electronic Component SCHNEIDER(France)electronics brand
Heating Rate ≤ 15℃/min ( suggest 10℃/min for longer life using of furnace )
Safety Protection Overheat and Thermocouple-break alarm
Certification ISO9001 CE SGS
Furnace Shell High quality cold-rolled steel sheets CNC processing
Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature furnace gloves One piece of furnace hook One set of sealing flanges
Optional Paperless recorder
Quartz boat
Vacuum pump

Overview

1700℃ STG Series products are mainly applied for the heat treatment of samples under vacuum or protective atmosphere, Quality Mosi2 Rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements. The product uses the new-type ceramic fiber material as the furnace chamber material; the furnace tube material is corundum, and the tube is sealed by stainless steel flanges on its both ends, the furnace can be work under the vacuum atmosphere condition, there are air inlet and air outlet on the flange, also it can be filled in protective air, the precision needle-valve may adjust the air inlet flow rate.

Features

The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder and sinter without volatile in high temperature, Green, safety and comply with international standards
The heating element is made of Quality Mosi2 Rod, which can bear large load, stable and long service life; the rods are evenly arranged on both sides of the furnace, and the temperature field uniformity is good
Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1600℃ within 160 minutes, more than 3 times higher than the same specification electric furnace sintering efficiency in the industry, safe and efficient
High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C.
Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments
The gas path system can be selected from one or three-way gas mass flow meters, and the gas mixing system can also be single-input and single-out. Accurate control of gas digital control, flow switch and flow time can be automatically controlled by touch screen to achieve unattended air control, accuracy: ±1% F.S, response time: ≤4sec
The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action
The vacuum system adopts a rotary vane vacuum unit. The vacuum measurement uses a digital composite vacuum machine or a Pirani vacuum gauge. The measuring instrument is integrated on the temperature control panel for easy operation.
Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves, with memory card for analysis and printing of experimental data.

Application

1700°C mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.
