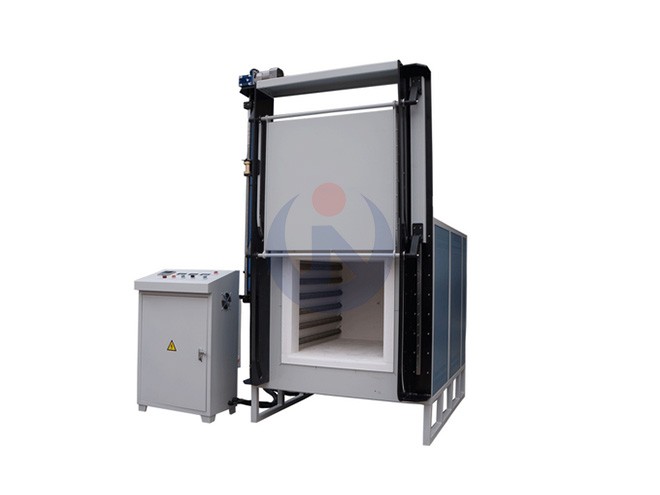

Model No.: STD-640-12
Chamber Size: 800*1000*800mm
Continuous Temp.: 1100℃
Heating Element: High Quality HRE
Temperature Precision: ±1℃
Thermocouple: N Type
| Model | STD-96-12 | STD-288-12 | STD-640-12 | STD-1200-12 | STD-2160-12 | STD-3000-12 | Customized |
| Chamber Size（WxLxH）mm | 400x600x400 | 600x800x600 | 800x1000x800 | 1000x1200x1000 | 1200x1500x1200 | 1500x2000x1000 | Any size |
| Type | Industrial Box Furnace | ||||||
| Furnace Structure | Chamber Material, Temperature Controller System, Heating Element, Furnace Shell and Other assistant parts | ||||||
| Max Temperature | 1200℃ | ||||||
| Continue Operating Temp. | 1100℃ | ||||||
| Power Supply | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| Heating Element | High Quality HRE | ||||||
| Chamber Material | High temperature polycrystal alumina ceramic fiber material | ||||||
| Temperature Precision | ±1℃ | ||||||
| Thermocouple | N type | ||||||
| Temperature Controller Electronic Component | Shimaden intelligent microcomputer PID controller can program 32 segments | ||||||
| Electronic Component | Schneider maker | ||||||
| Heating Rate | ≤ 25℃/min ( suggest 15℃/min for longer life using of furnace ) | ||||||
| Safety Protection | Overheat and Thermocouple-break alarm | ||||||
| Certification | ISO9001 CE SGS | ||||||
| Furnace Shell | High quality cold-rolled steel sheets CNC processing | ||||||
| Insulation | High quality thermal insulation material to ensure a good uniformity | ||||||
| Accessories | One pair of high temperature furnace gloves One piece of crucible steel tong - One pair of crucible steel tongs | ||||||
| Optional | Paperless recorder Stainless steel exhaust chimney Alumina crucible Electric lifting structure | ||||||
