GDU&GCU Type Heating Elements

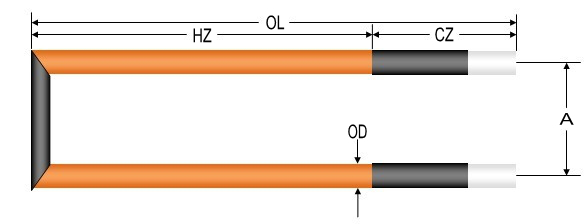

Model type: GDU

Outer diameter: OD, mm

Hot end length: HZ, mm

Cold end length: CZ, mm

Total length: OL, mm

Spacing tool holder spacing: A, mm

Note: can be customized according to requirements

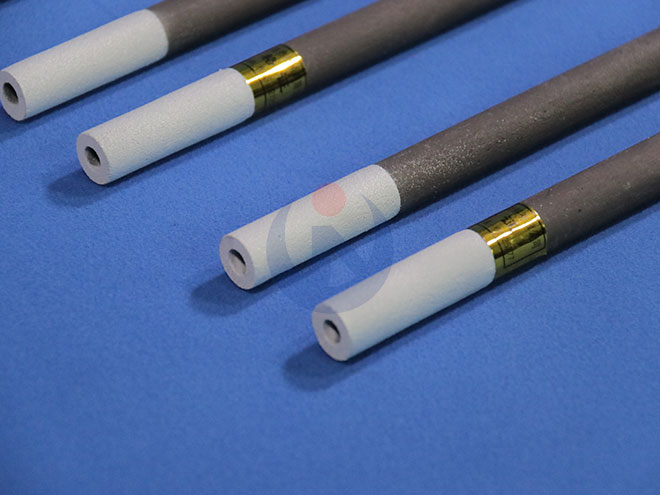

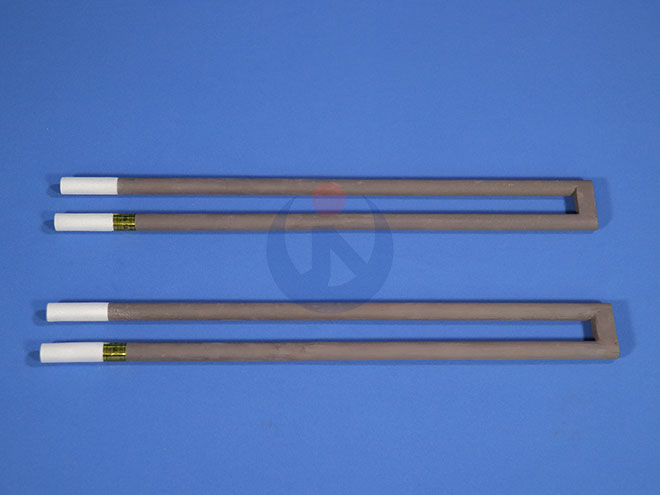

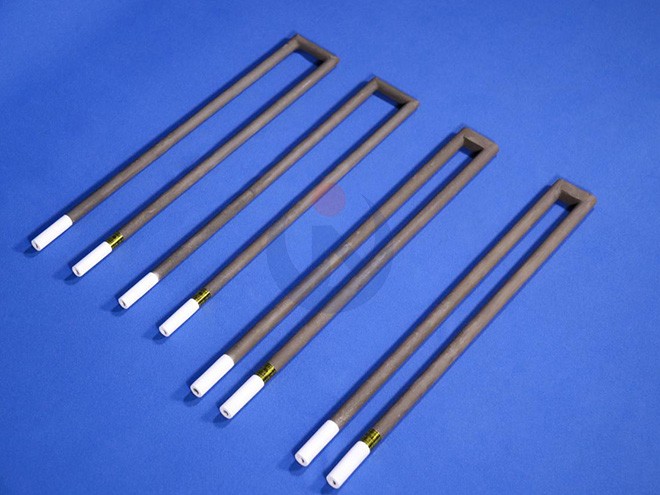

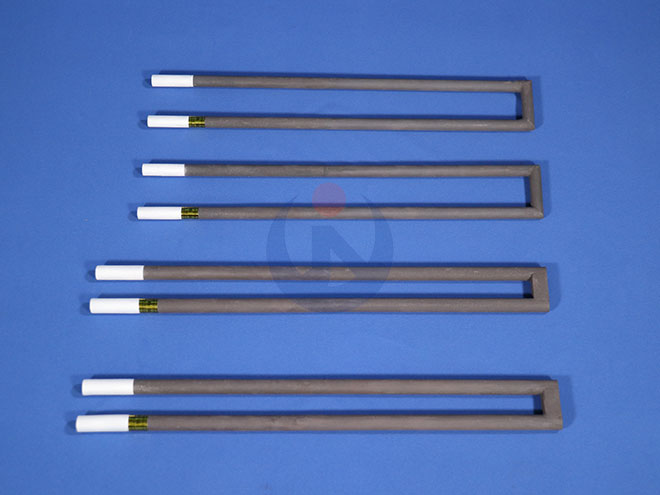

U-shaped SIC heating elements use industry and matters needing attention: U-shaped silicon carbide rods are composed of two equal diameter silicon carbide rods sharing a cold end. U-shaped silicon carbide rods can be connected to the power cord at one end of the kiln. The surface temperature of the heating part is 1500 degrees, mainly used for furnaces that require high furnace temperature and high furnace temperature uniformity.

Its characteristics are power saving and longer service life.
