1700℃ Muffle Furnace

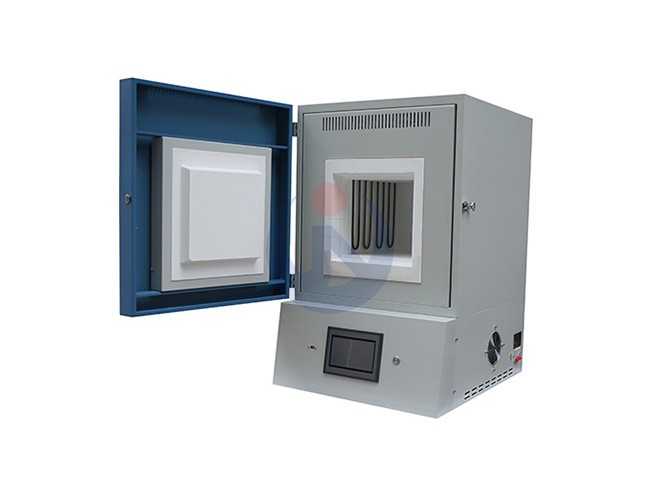

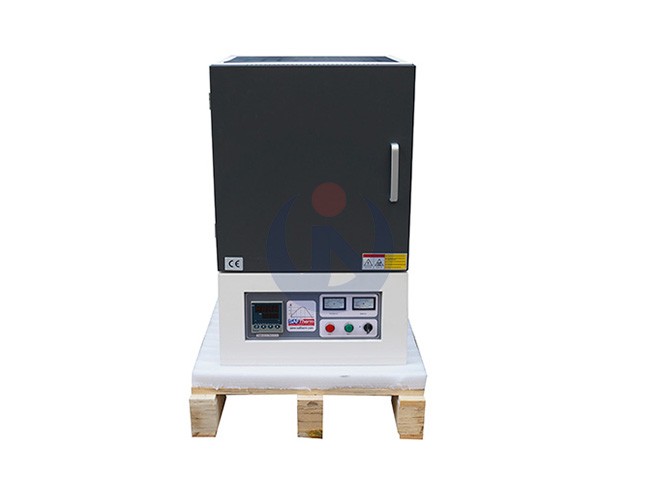

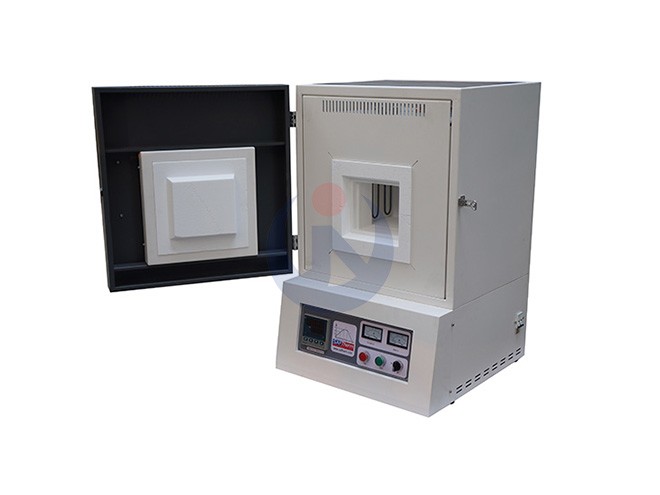

1700℃ Electric Resistance Wire Laboratory Box Muffle Furnace

Model No.: STM-3-17

Chamber Size: 150*150*150mm

Continuous Temp.: 1600℃

Heating Element: Quality Mosi2 Rod

Temperature Precision: ±1℃

Thermocouple: B Type


Model STM-3-17 STM-6-17 STM-8-17 STM-12-17 STM-20-17 STM-36-17 Customized
Chamber Size(WxLxH)mm 150x150x150 180x230x150 200x200x200 200x300x200 250x320x250 300x400x300 Any size
Type Benchtop
Furnace Structure Chamber Material, Temperature Controller System, Heating Element, Furnace Shell and Other assistant parts
Max Temperature 1700℃
Continue Operating Temp. 1600℃
Power Supply 220V/4KW 220V/4KW 380V/5KW 380V/6KW 380V/9KW 380V/15KW Depends on size
Heating Element High Quality Molybdenum Disilicide (MoSi2 ) heater
Chamber Material High temperature 1800 Grade polycrystal alumina ceramic fiber material
Temperature Precision ±1℃
Thermocouple B type
Temperature Controller YUDIAN brand 518P intelligent microcomputer PID controller can program 30 segments as standard or any other barnd as optional
Electronic Component Schneider (France ) brand
Heating Rate ≤ 25℃/min ( suggest 15℃/min for longer life using of furnace )
Safety Protection Overheat and thermocouple-break alarm
Certification ISO9001 CE SGS
Furnace Shell high quality cold-rolled steel sheets CNC processing
Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature furnace gloves One pair of crucible stongs
Optional Paperless recorder Stainless steel exhaust chimney Alumina crucible


1700℃ STM series products are mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality Silicon molybdenum rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.


The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%.
The heating element is made of high-quality silicon molybdenum rod, which can bear large load, stable and long service life; the silicon molybdenum rod is evenly arranged on both sides of the furnace, and the temperature field uniformity is good.
Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1600℃ within 90 minutes, more than 3 times higher than the same specification electric furnace sintering efficiency in the industry, safe and efficient.
High temperature control accuracy, small temperature compensation and temperature accuracy ± 1 °C.
Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments.
Electronic components are used Schneider products, with leakage protection, safe and reliable.
The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.
When the instrument program is set, just press the run button and the next work will be completed automatically.
Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves, with memory card for analysis and printing of experimental data.


1700°C muffle furnace (box type resistance furnace) mainly provides high temperature heat treatment environment for industrial colleges, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.
