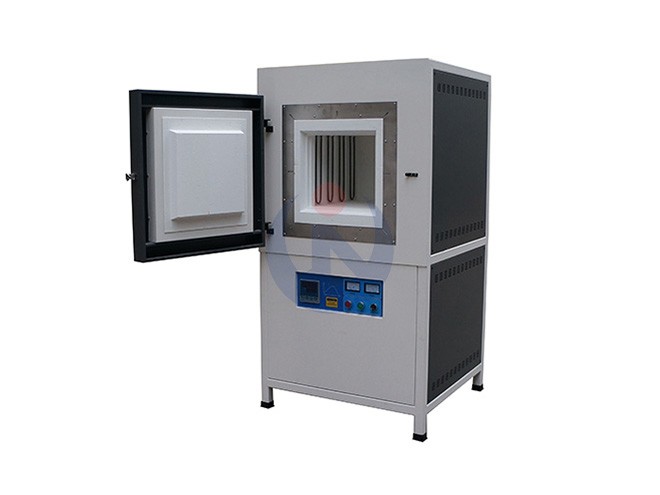

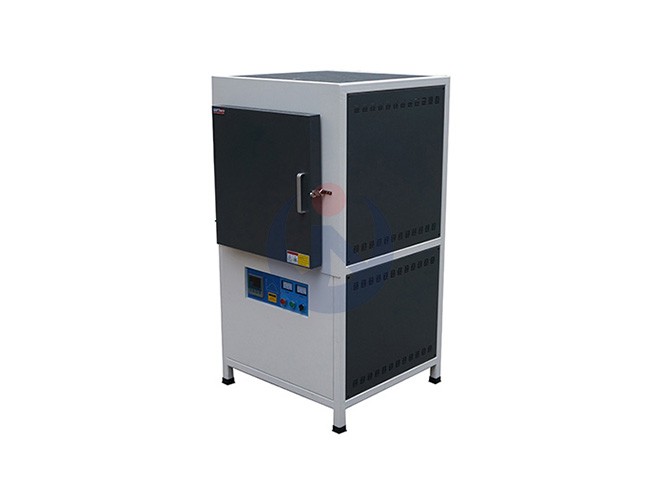

1700℃ Industrial Box Furnace1700℃ Industrial Box Furnace

1700℃ Industrial Box Furnace

Max Temperature 1800℃ for Special Material Heating Element

Model No.: STD-36-17

Chamber Size: 300*400*300mm

Continuous Temp.: 1700℃

Heating Element: High Quality Mosi2 Rod

Temperature Precision: ±1℃

Thermocouple: B Type

Specification

Model STD-36-17 STD-288-17 STD-640-17 STD-1200-17 STD-2160-17 STD-3000-17 Customized
Chamber Size(WxLxH)mm 300x400x300 600x800x600 800x1000x800 1000x1200x1000 1200x1500x1200 1500x2000x1000 Any size
Type Box
Furnace Structure Chamber Material, Temperature Controller System, Heating Element, Furnace Shell and Other assistant parts
Max Temperature 1700℃
Continue Operating Temp. 1600℃
Power Supply 380V 380V 380V 380V 380V 380V 380V
Heating Element  High Quality MoSi2 rod
Chamber Material High temperature polycrystal alumina ceramic fiber material
Temperature Precision ±1℃
Thermocouple B type
Temperature Controller YUDIAN intelligent microcomputer PID controller can program 30 segments
Electronic Component Schneider maker
Heating Rate ≤ 10℃/min ( suggest 10℃/min for longer life using of furnace )
Safety Protection Overheat and Thermocouple-break alarm
Certification ISO9001 CE SGS
Furnace Shell High quality cold-rolled steel sheets CNC processing
Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature furnace gloves One piece of crucible steel tong- One pair of crucible steel tongs
Optional Paperless recorder Stainless steel exhaust chimney Alumina crucible Electric lifting structure

Overview

1700℃ series products are mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality Silicon molybdenum rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.

Features

Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1600℃ within 160 minutes
The heating element is made of high-quality silicon molybdenum rod, which can bear large load, stable and long service life; the silicon molybdenum rod is evenly arranged on both sides of the furnace, and the temperature field uniformity is good
Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves, with memory card for analysis and printing of experimental data.
The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%
Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.
High temperature control accuracy, small temperature compensation and temperature accuracy ± 1 ° C
When the instrument program is set, just press the run button and the next work will be completed automatically
Electronic components are used Schneider products, with leakage protection, safe and reliable

Application

The 1700°C industrial box furnace (box type resistance furnace) mainly provides high temperature heat treatment environment for industrials, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.
