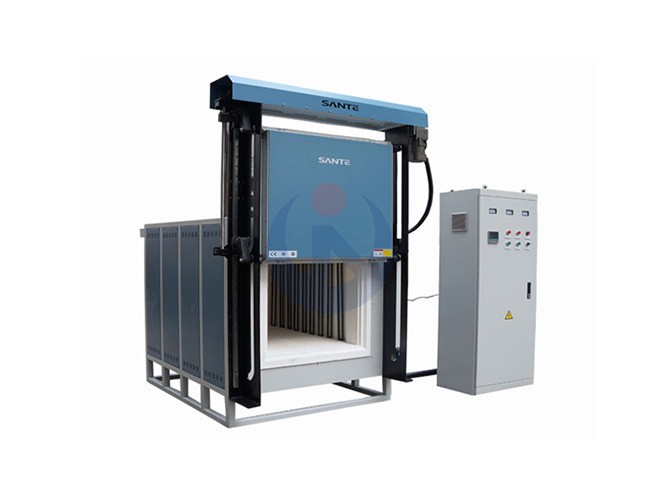

1400℃ Industrial Electric Lifting Box Furnace

1400℃ Industrial Electric Lifting Box Furnace

1400℃ STD Series Industrial Box Lifting Door Furnace

Model No.: STD-640-14

Chamber Size: 800*1000*800mm

Continuous Temp.: 1300℃

Heating Element: Quality SIC Rod

Temperature Precision: ±1℃

Thermocouple: S Type

Specification

Model STD-96-14 STD-288-14 STD-640-14 STD-1200-14 STD-2160-14 STD-3000-14 Customized
Chamber Size(WxLxH)mm 400x600x400 600x800x600 800x1000x800 1000x1200x1000 1200x1500x1200 1500x2000x1000 Any size
Type Industrial Box Furnace
Furnace Structure Chamber Material, Temperature Controller System, Heating Element, Furnace Shell and Other assistant parts
Max Temperature 1400℃
Continue Operating Temp. 1300℃
Power Supply 380V 380V 380V 380V 380V 380V 380V
Heating Element High Quality SIC Rod
Chamber Material High temperature Mullite Brick
Temperature Precision ±1℃
Thermocouple S type
Temperature Controller Shimaden intelligent microcomputer PID controller can program 32 segments
Electronic Component Schneider maker
Heating Rate ≤ 20℃/min ( suggest 15℃/min for longer life using of furnace )
Safety Protection Overheat and Thermocouple-break alarm
Certification ISO9001 CE SGS
Furnace Shell High quality cold-rolled steel sheets CNC processing
Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature furnace gloves One piece of crucible steel tong - One pair of crucible steel tongs
Optional Paperless recorder Stainless steel exhaust chimney Alumina crucible Electric lifting structure



Overview

1400℃ STD series products are mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality SiC rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.

Features

Electronic components are used Schneider products, with leakage protection, safe and reliable, Large volume furnace, the convenience of feeding and discharging is the key factor, it can be designed to open the furnace doors from two ends, and the furnace door could be open either in horizontal or vertical; It can also be designed for multi-stage heating to improve the uniformity of furnace temperature
The furnace material is alumina refractory material and does not drop powder in high temperature
Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments
The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.

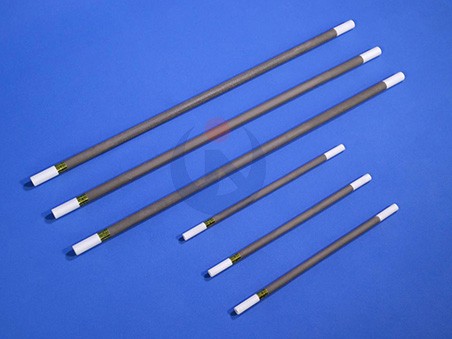

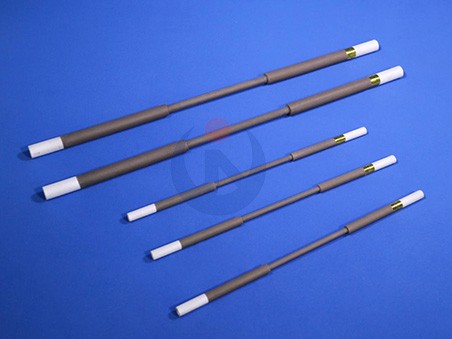

The heating element is made of high-quality SiC, which can bear large load, stable and long service life
High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C
When the instrument program is set, just press the run button and the next work will be completed automatically
he heating rate is fast, from room temperature to 1400 degrees, generally takes 100 minutes
Optional air inlet can be used to purge and protect the inert gas such as air. It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location.

Application

1400°C industrial furnace (box type resistance furnace) mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.
